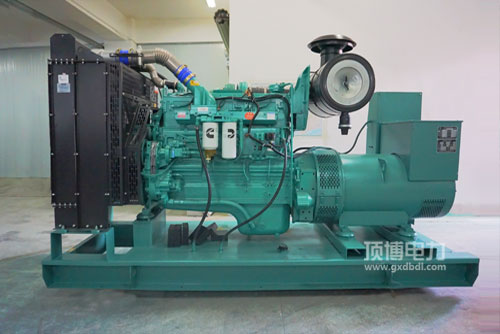

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用打火机汽油经济增长性好: 高端的汽油有效调节设备，独特的的STC、ESTC 分类有效调节设备，个性化设计方案的火塞顶端助燃室，高压变压器压喷射汽油，多方面吸雾，助燃多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态耐磨性优异的: 美好的打火机综合设计构思，协助康明斯独特性的EFC软件，把控的精密高，为了响应期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用热车机升工作功率高: 整体结构设计的紧凑型suv.形态布置设计适当合理，正常运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50实现国家非公路第三步过程及亚洲Tier2. Tier 3减排政策法规必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可获性好， 热车机程序运行及运营维护清洗保养便捷性，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率范畴 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯来发电用起心理的特殊性：体积太小， 压解比较高， 网格板空气质量蒸汽加热，方便初始化，可移动车载导航交流电源的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启动因款式	通用耗油率(kW)Prime Power	备品工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
